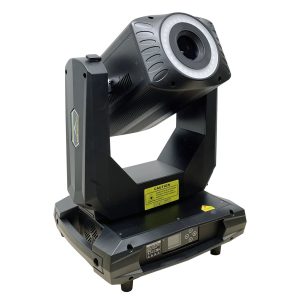

12W RGB Laser Moving

鈴木 しんいち
機材： レーザー
台数： 6
Spec
Type RGB 12W Moving Head
PAN/TILT Horizontal 540 degrees, vertical 270 degrees
Laser Power R/3000mW 638nm G/3000mW 525nm B/4200mW 450nm Class4 Beam Diameter(1/e2):<5.0mm
Scanning-system 40kpps　Scan angle 50° Max 60°
Power Supply AC 100-220V, 50/60Hz
Power Consumption 250w(MAX)
Net Weight 20kg
Dimension 520x410x680mm
Controls Auto/DMX/Master-Slave/ILDA/SD Card
Operation Temperature 0°C～35°C
Protection indoor
DMX Mode 6CH/40CH
  DMX Chart
Chanel Chanel value Content
CH1 0～255 X axis motor (X motor position)
CH2 0～255 X motor Fine-tuning
CH3 0～255 Y axis motor (X motor position)
CH4 0～255 Y motor Fine-tuning
CH5 0～255 XY motor speed choose
CH6 0～255 XY motor reset (When the value is 255, after 20S ,reset)
  所有台数　6台
