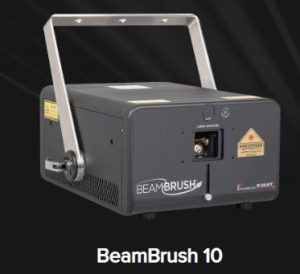

KVANT BeamBrush 10
RGB合計10Wレーザー,Pangolin FB4コントローラーを内蔵しLANケーブル接続。 新機構BeamBrushで0～100％可変でビームに拡散をかけられるのでシチュエーションに応じてオーディエンスへのスキャン、カメラへの照射も可能とする （注意：メーカー推奨ではありません）
仕様
| Source | Type: |
semiconductor diode | full-colour RGB laser projector |
| Suitability: |
laser graphics displays | indoor aerial beam shows | audience scanning shows [ONLY when ALL safety criteria are fulfilled] |
| System control: |
Pangolin FB4 – Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console, Autoplay |
| Compliant with: |
EN 60825-1 [tested by TÜV SÜD], FDA |
| Ingress protection rating |
IP20 |
| Weight [kg]: |
13 |
| Size [WxHxD, mm]: |
339 x 353 x 270 |
| Guaranteed opt. output [mW]: |
9700mw | 9.7W |
| R | G | B [mW]: |
2500 | 2800 | 4500 |
| 電Wavelengths [nm, ±5nm]: |
637 | 520 | 445 |
| Beam size [mm]: |
4.5 x 4.5 |
| Beam divergence [mrad]: |
<0.9 mrad | applies when BeamBrush is not active |
| Modulation [kHz] | type: |
100 | Analog |
| X-Y scanners: |
| ScannerMAX 506 Compact, 40 Kpps@8°, max. scanning angle 60° on both axes |
|
| Power requirements [V] | Input: |
100-230/50-60Hz |
| Max. power consumption [VA]: |
340 |
| Operation temperature [°C]: |
10-40C |
